Re: jom belajar buka skru cbr400.....

Post  ~MI~ on Mon Mar 24, 2008 2:23 pm

Kalo tak silap aku CBR400 pun hi rev jugak macam ZX2 kan?

Moto aku dulu pun lebih kurang gak problem macam ni... idle cun...
pickup constant dari rpm 0 sampai rpm 6... pastu semput dari rpm 6 sampai 8... pastu okay semula dari rpm 9 sampai rpm 16... (paling tinggi rpm aku capai).
Buat balancing kat Seng Koi... terus cun dan dapat constant pickup dari rpm 0 sampai 16, takde semput-semput...

Yang aku pernah baca dulu.... bila moto yang hi rev, carb balancing kena buat untuk low rev, mid rev dan hi rev... kalo tak silap dari forum kawasaki sport racing australia.

~MI~

Number of posts : 205
Age : 35
Location : Permas Jaya
Registration date : 2008-01-11

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Mon Mar 31, 2008 12:11 am

abg MI, zx2 lagi hi-rev. RPM sampai 19k sapa bole celen. CBR sampai 14k je..tapi ada kemungkinan apa yg abg cakap tu, cuma saya nak tumpukan ke electronic + wiring dulu.. Smile thx bro!

UPDATE!!!

tadi ada masa sket, gi jenguk moto, dan buat sket2..

setelah troubleshoot wiring kat CDI dah setel, problem masih ada, kami teruskan troubleshoot bahagian ignition coil.

memandangkan nak carik CBR400 punya ignition coil punya la payah, nak jumpa member yg pakai pun takde, so, saya swap dengan VFR400...

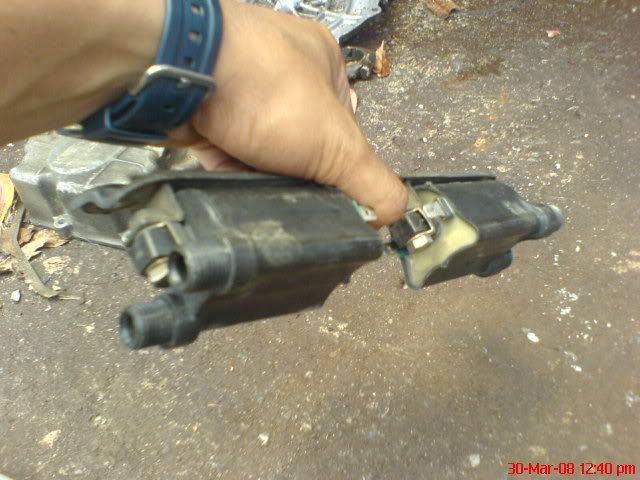

ignition coil lepas dibuka dari CBR.

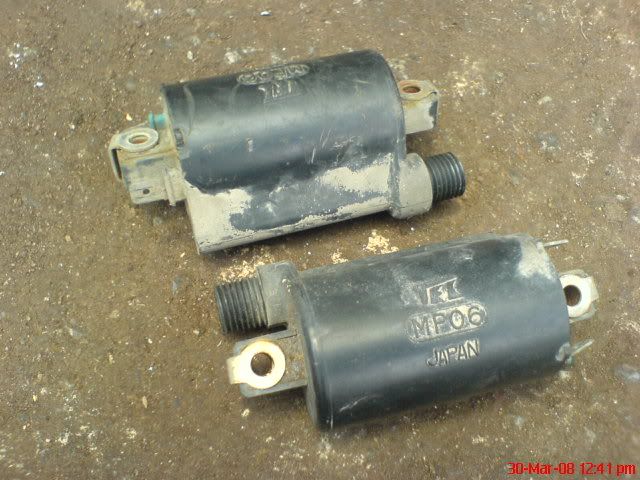

ignition coil VFR400. saya ceraikan satu2 dari casing dia.

kami menghadapi sedikit masalah.
wiring VFR dan CBR tak sama! VFR ada 8 soket yg disambung ke ignition coil tapi CBR cuma ada 4! boleh lihat dari gambar di bawah




jadi setelah difikir2,nak dpt ignition coil yg sama mmg mustahil, jadi DIY saje! sifu saya mencadangkan supaya buat sambungan secara parallel. DIY RAWK!!!! Laughing


lepas tu kena carik sambungan yang betul utk dapatkan firing ang betul. CBR400 punya susunan firing 1-3-2-4. nak carik pun satu hal ni. jadi nak tau samada sambungan tu betul ke tak, kami crank motor banyak2 kali, kalo ada letup2 kirenye salah sambungan la tu. dan satu lagi kami rasa manifold pakai tangan. kalau manifold yg panas tu maknanya dah betul la sambungannya.

tapi setelah swap ignition coil, masalah tersebut masih ada lagi............. Mad Crying or Very sad

so..selepas ni...next project...saya akan troubleshoot 'signal generator' kat engine pulak! akan ku carik masalah ni sampai dapat dan buat motorku titptop!! hiyaahhhhH! bounce

p/s - guys, kalau ada suggestion tolong kasitau. thx.. Very Happy

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  art zxr on Mon Mar 31, 2008 12:27 am

Zul!!. Ko ada test meter tak??
Setiap coil CBR ko tu ada 2 input dgn 2 output ke sparkplug 1+4 / 2+3 kan??

Cuba check resistance antara dua input mesti dlm lingkungan 2.3~3.5 ohm.

Resistance antara 2 output ke spark plug pulak mesti dalam lingkungan 12~18K ohm. Kalau Ok maknanya coil ko OK lagi. Takyah tukar.

art zxr

Number of posts : 221
Location : Larkin Jaya, Johor Bahru. Johor
Registration date : 2008-01-12

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  pakutekan on Mon Mar 31, 2008 12:55 am

pasni ko wat bengkel blakang umah la zul.. aku nm tumpang plak.. heheee Very Happy
teruskan usaha Cool

pakutekan

Number of posts : 98
Location : skudai-shah alam
Registration date : 2008-02-12

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  pistole on Mon Mar 31, 2008 11:40 am

.

- Very Happy

- you guys are geek .

- but good DIY work !

cheers and nice pics.

.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Mon Mar 31, 2008 1:26 pm

art zxr wrote:Zul!!. Ko ada test meter tak??
Setiap coil CBR ko tu ada 2 input dgn 2 output ke sparkplug 1+4 / 2+3 kan??

Cuba check resistance antara dua input mesti dlm lingkungan 2.3~3.5 ohm.

Resistance antara 2 output ke spark plug pulak mesti dalam lingkungan 12~18K ohm. Kalau Ok maknanya coil ko OK lagi. Takyah tukar.

yerp abg art betul! sama ke mcm ignition coil ZXR ? Question kalau masuk ZXR punya kat CBR boleh ke?

malangnya, saya tak ada test meter. Crying or Very sad tapi lepas guna ignition coil VFR pun the problem still exist. maknanya masalah lain la ni.

anyway, thanks 4 sharing the info!

PAKU >> umah aku tools apa pun takde. camana nak bukak bengkel wakakakaa..gi umah abg art la, tools sepah2..apa nak smua ada Very Happy

BRO PISTOLE >> bila nak share bro bedah softail. Twisted Evil

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  pistole on Mon Mar 31, 2008 1:30 pm

zul_cbr wrote:BRO PISTOLE >> bila nak share bro bedah softail. Twisted Evil


- kakakak.

- aku punya beca has been (surprisingly) very reliable.

- jadik , belum sempat nak 'bedah' dia lagik ...

.

- anyhow , please remember to check/service/clean the carbs.

cheers

.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Mon Mar 31, 2008 1:33 pm

[quote="pistole"]
zul_cbr wrote:BRO PISTOLE >> bila nak share bro bedah softail. Twisted Evil[/quote
- aku punya beca has been (surprisingly) very reliable.

i'm jealous.... Mad

between americans and japs.. Neutral

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  loloqs jb on Mon Mar 31, 2008 2:04 pm

[quote="zul_cbr"]
pistole wrote:
zul_cbr wrote:BRO PISTOLE >> bila nak share bro bedah softail. Twisted Evil[/quote
- aku punya beca has been (surprisingly) very reliable.

i'm jealous.... Mad

between americans and japs.. Neutral
nak tya kau la zul dah tukar plug?
cuba tukar dulu masalah moto kau ni samer ngan kater saga aku skrg ni
aku pun suspek bhgian api problem

loloqs jb

Number of posts : 20
Registration date : 2008-03-27

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  art zxr on Mon Mar 31, 2008 3:47 pm

Try tukar2 barang ni leceh. Kalau tau mcm mana nak test lagi baik. Aku suspek bahagian fueling ko ada problem. Kalau ignition nak start pun susah.. Kalau benda TPS kt karburetor tu cuba check. Mungkin benda tu puncanya. Kena ada test meter jugak nak check benda tu.

art zxr

Number of posts : 221
Location : Larkin Jaya, Johor Bahru. Johor
Registration date : 2008-01-12

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Mon Mar 31, 2008 10:39 pm

art zxr wrote:Try tukar2 barang ni leceh. Kalau tau mcm mana nak test lagi baik. Aku suspek bahagian fueling ko ada problem. Kalau ignition nak start pun susah.. Kalau benda TPS kt karburetor tu cuba check. Mungkin benda tu puncanya. Kena ada test meter jugak nak check benda tu.

bende TPS tu dah cek bang. dah disconnect. tapi takde apa beza pun. ntah2, bende tu auta je kot?

kalo bahagian fueling tu camana tu? xpaham la bang.

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  art zxr on Mon Mar 31, 2008 10:46 pm

Kena tengok wire TPS tu sambung ke mana. Kalau ke ignition box mungkin ia utk mengawal ignition advance/retard.
Fueling tu termasuk karburetor la. Hi speed jet sumbat, float set rendah sangat, even pernah kena sekali breather dekat tangki petrol sumbat pun mcm tu. Bukak tutup tangki je OK.

art zxr

Number of posts : 221
Location : Larkin Jaya, Johor Bahru. Johor
Registration date : 2008-01-12

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Mon Mar 31, 2008 11:06 pm

art zxr wrote:Kena tengok wire TPS tu sambung ke mana. Kalau ke ignition box mungkin ia utk mengawal ignition advance/retard.
Fueling tu termasuk karburetor la. Hi speed jet sumbat, float set rendah sangat, even pernah kena sekali breather dekat tangki petrol sumbat pun mcm tu. Bukak tutup tangki je OK.

yerp, dia bersambung ke CDI. kan saya dah tunjuk gambo tu yg saya cek wiring dari TPS ke CDI. masalah tu jadik jugak. bende lain la rasanya. karburetor tu belum lagi wat pape. cuma tgk diagfram je. xkoyak. mungkin btol kot kna cek balik float seting dsb. TQ!!! Smile

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  art zxr on Mon Mar 31, 2008 11:20 pm

Kalau mcm tu betul la apa yg bro pistole ckpkan. TPS tu utk mengubah timing ignition. Baik ko sambung balik.

art zxr

Number of posts : 221
Location : Larkin Jaya, Johor Bahru. Johor
Registration date : 2008-01-12

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Wed Apr 09, 2008 9:43 pm

salam guys...

UPDATE!!!!!!!!


alhamdulillah...selama setahun saya pening cari masalah ni (pada 4k RPM dan ia semput), hantar ke kedai di Sri Putri pun tak jalan...akhirnya...petang tadi... berjaya solve......................................................dengan bantuan Tukun GSX400 (MBC) dan Castello RS250 (MBC).................

nak tau masalah dtg dari mana? JAWAPANNYA.....speed limiter pada meter.... Cool

dan semput2 tu bukannya problem dari CARBURETOR, CDI, ENGINE, WIRING dan bla3... Laughing

saya pun tak sempat nak fahamkan problem ni 100%. cuma sesikit je. Original Meter CBR400 ada speed limiter. kalau tak salah saya, apabila meter tunjuk 180km/j, ia akan hantar signal ke CDI utk cut power (restrict). tetapi...selepas excident...original meter tu PECAH dan saya gantikan dengan meter ZXR 250. meter ZXR tak ada limiter. jadi salah satu wayar dari CDI tak disambungkan ke mana2.lihat dibawah.



sebab tu la moto saya semput, sbb ia sentiasa hantar signal ke CDI supaya sentiasa RESTRICT power. Smile

jadi, apa yg kami buat?

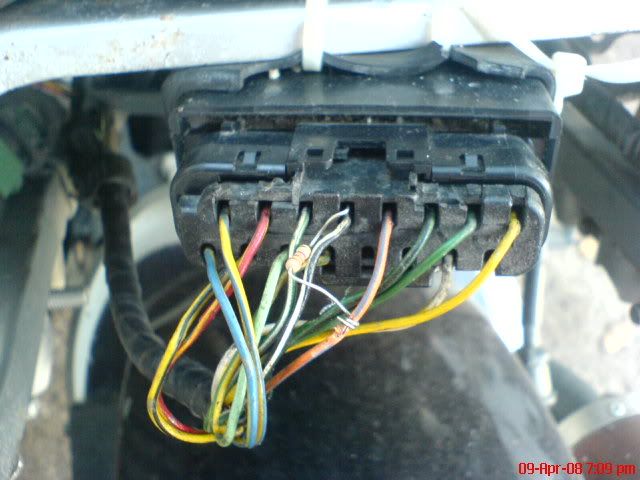

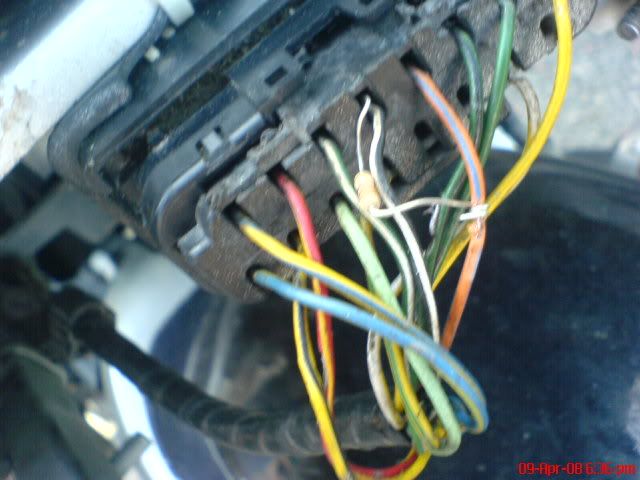

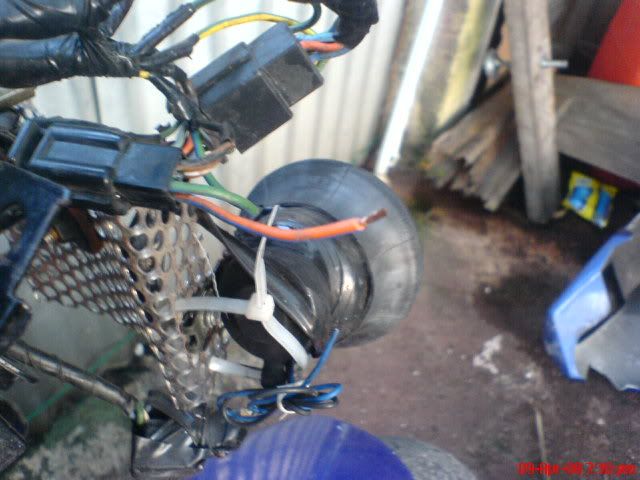

kami nak "tipu" CDI tu. so, kami letak satu resistor kat CDI sebagai DUMMY. seolah2 speed limiter tu dipasang la tapi sebenarnya tak. so, apa yg saya dpt, motor saya dah tak semput2 lagi serta tiada CUT OFF lagi. boleh la dpt top 220km/j Laughing

p/s - tolng betulkan kalau rasa ada penyataan saya yg salah. TQ!

p/s - siapa sangka masalah yg memeningkan ni hanya dtg dari meter je! Laughing

p/s - kos keseluruhan = RM0.10 (harga resistor) cheers cheers cheers cheers cheers cheers

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  pistole on Wed Apr 09, 2008 10:05 pm

.

- zul , tahniah.

- memang syiok bila boleh tracing masalah.

cheers
.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  scid on Wed Apr 09, 2008 10:55 pm

kedai yg otai 2 pong xleh buat last2 dengan kos 10 sen sudah setel..kirenyer pasnih dah leh ride ar zul cheers

scid

Number of posts : 431
Age : 32
Location : Skudai, Johor ~ Gopeng, Perak
Registration date : 2008-01-10

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Wed Apr 09, 2008 11:19 pm

pistole wrote:.

- zul , tahniah.

- memang syiok bila boleh tracing masalah.

cheers
.

thanks abg pistole.
rasa mau melompat tak berhenti!!! bounce

saya teringat kata2 foremen kat Sri Putri..."aiyoooo gua dah tengok carburetor ok, gua kene turunkan enjin motor lu ni...dah teruk..."...kui3...

now its proven..not the engine issue!!!

saya cuba search sikit..what i got.

[url]http://cgi.ebay.co.uk/Speed-restriction-Mod-Kit-NC29-NC23-NC30-CB400SF_W0QQitemZ190208841668QQihZ009QQcategoryZ9946QQssPageNameZWDVWQQrdZ1QQcmdZViewItem
[/url]
What is the speed limiter?

The Speed limiter is an electronic sensor inside the speedometer, once you get to 112MPH (180KPH) the sensor is triggered, signals sent to the CDI/ECU unit to shut down 2 spark plugs. After this happens you simply cannot accelerate any more!

What happens after the Mod is fitted?
After fitting the bike will go past 112MPH (180KPH), Race/track day bikes will benefit this if fitted at CDI/ECU end of the bike as that means they can get rid of the Speedo off the bike.

How do I get rid of it?
There are a few methods of bypassing or removing this limiter; the item listed is one of them.

What IS this item?
Itís simply a resistor with wires soldered to each leg and protected with Adhesive Heatshrink for protection. The wires come ready prepped for you to crimp on the provided crimps or for you to solder in to the loom.

Whatís in the kit?
1 x Res mod
2 x female crimps + an extra 1 for sods law.
1 X set of how to, step-by-step instructions for your bike*.
Instructions show 2 locations for the mod, plug in behind Speedo or hard wire in to CDI/ECU end of the wiring loom.

Do I need anything else?
Yes. You will also need: crimp tool, Pliers that also cut, Soldering iron, solder, flux, Electrical Tape or Loom Tape, sharp blade/wire strippers & Patience!

But I donít have Soldering equipment
If you do not have access to Soldering Equipment you can twist the wires together, make sure it will NOT come undone. Loose Mod connection will cause issues.


mereka di luar negara jual restrictor kit...hahahahha...kami hanya guna RM0.10 utk de-restrict! dah tau 'rahsia' cbr400,cb400,vfr400....hihihihihihihihihihihihihihhih...lai3...sapa nak hantar motor dengan kami Twisted Evil

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Wed Apr 09, 2008 11:27 pm

scid wrote:kedai yg otai 2 pong xleh buat last2 dengan kos 10 sen sudah setel..kirenyer pasnih dah leh ride ar zul cheers

insyaallah...bleh join korang pasni! Cool

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  ben_panced on Thu Apr 10, 2008 12:29 am

yeah zul..
nanti kalo rezeki aku lebih skit, dapat pakai superfour ke vfr 400 ke leh le wat mod nih..
hehehheh rabbit

ben_panced

Number of posts : 90
Age : 30
Location : Kulai
Registration date : 2008-01-10

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  rPiz on Thu Apr 10, 2008 12:49 am

ko agak2...
kawa bapak aq tu, ko blh bg jejak 200 km/j x???

rPiz

Number of posts : 156
Location : batu pahat - ayer keroh,mlke
Registration date : 2008-01-12

View user profile http://profiles.friendster.com/hafizhassan881114

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  scid on Thu Apr 10, 2008 12:59 am

rPiz wrote:ko agak2...
kawa bapak aq tu, ko blh bg jejak 200 km/j x???

ko bg ajer ka zul tuh..bukan setakat 200kmj..20kmj pon dier bleh buat Twisted Evil

scid

Number of posts : 431
Age : 32
Location : Skudai, Johor ~ Gopeng, Perak
Registration date : 2008-01-10

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  han_JKR on Thu Apr 10, 2008 4:17 am

rPiz wrote:ko agak2...
kawa bapak aq tu, ko blh bg jejak 200 km/j x???

laju2 nk kemana....... Razz

han_JKR

Number of posts : 53
Age : 28
Location : Ayer Keroh,Melaka @ Kulai, Johor Darul Takzim
Registration date : 2008-01-26

View user profile

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  assasins on Thu Apr 10, 2008 8:49 am

rPiz wrote:ko agak2...
kawa bapak aq tu, ko blh bg jejak 200 km/j x???

nak buat laju2 nak kemana tue.....
berani ker nak cecah 200 tue.....
Razz Razz Razz
aku yang pakai c70 nie pun tak berani nak full throtle.....
he he he....
Razz Razz Razz

assasins

Number of posts : 261
Age : 30
Location : johor bahru
Registration date : 2008-01-09

View user profile http://en.netlog.com/21black_jack

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  zul_cbr on Thu Apr 10, 2008 9:01 am

rPiz wrote:ko agak2...
kawa bapak aq tu, ko blh bg jejak 200 km/j x???

tak sampai kut pis. melainkan ko tukar rim magnesium, masuk full carbon fiber bodykit, tuka system exhaust ke 2-1, pastu tambah turbo. ada bran?????? Twisted Evil

pis, ko tanya ben panced tu...tu otai zzr jb. 3 jam tak naik moto dah gigil lutut wa cakap luuuu Laughing naik rs125 matnan asyik nak sagat lutut je. siot!

assasins >> oit, aku tembak ko kang ngn M16. C70 kuning ko tu mmg kuang ajo sket.dah la tak brapa nak selow.


mana ntah tuan dier... Evil or Very Mad

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: jom belajar buka skru cbr400.....

Post  Sponsored content Today at 4:11 pm


Sponsored content


Back to top Go down

Page 3 of 6 Previous  1, 2, 3, 4, 5, 6  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
