Turun enjin???

Post  zul_cbr on Sat Jan 19, 2008 1:07 am

salam guys...

saya baru berjinak2 dgn aktiviti menurunkan enjin (membaraikan) moto....skang masih dlm proses blajo. bak kata tukun(MBC), baru nak masok diploma...kehkehkeh...

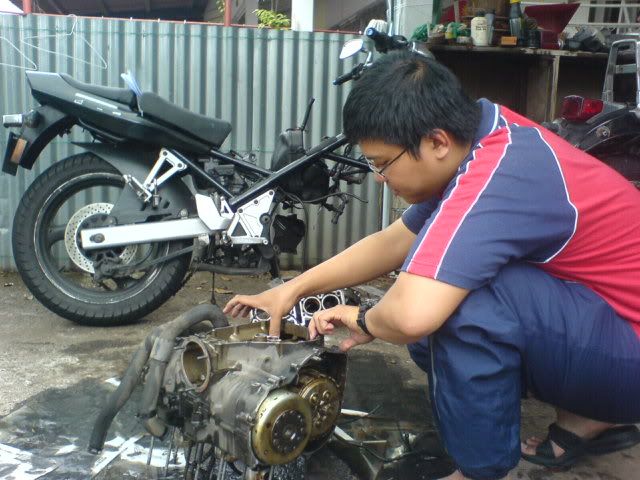

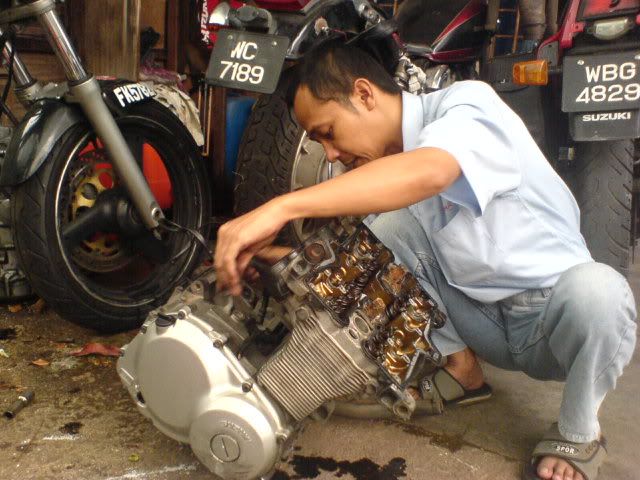

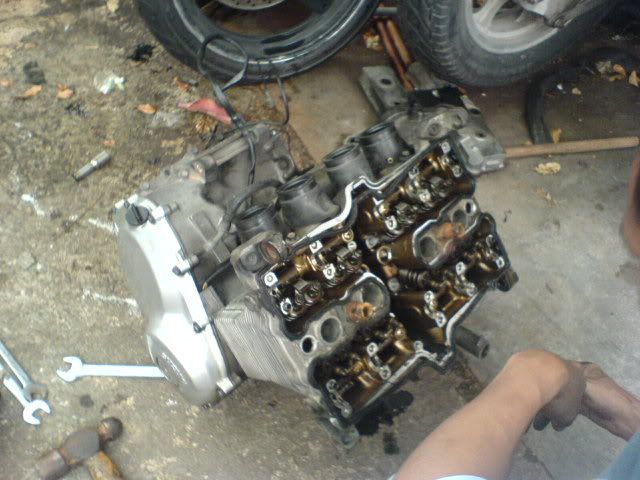

ini hasil kerja kami yg 1st...bengkel bawah pokok bumbung umah je...

target kami, nak troubleshoot problem moto sendiri pasni, SENDIRI! tanpa perlu ke kedai cha-yha utk ditipu dan dikelentong....atau minimise kemungkinan kna kenchengg...

moto projek, 1993 Suzuki Bandit 400.
problemnye, moto dah cecah 180km/j, pastu ada bunyi pelik kat engine, igtkan valve patah ke hape, tapi leh jalan lagi, sampai la moto terus mati...bila bukak head, semua dlm keadaan cantik...xde patah ke apa. piston pon ok je. suspek connecting rod pulak. skali tu..bila dah bukak kesemuanya....rupanya....bearing out....







sebenarnya, moto 4-stroke ni lebih kurang je semua..sama je...lebih2 lagi sbk. kawa,honda,suzy smua lebih kurang je...cuma ada certain teknologi yg ada pada kawa takde pada honda dan suzy dan vice versa...sikit2 je part yg membezakan...tapi kalo 2 stroke dah lain ar...hehehe...

p/s - thread ni saya akan update lagi, sbb cbr saya pun akan di"turun"kan enjin jugak. cuma tggu masa nak ride smula ke melaka. bro art kita pun expert bab2 turun enjin ni...mana la tau dpt kongsi2 ngn kami yg noob nih. Smile

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  art zxr on Sat Jan 19, 2008 4:41 am

Err,, 1st time overhaul ZX2 dulu mmg ada amik gamba. Pastu sape tah punya keja letak virus kat harddisc PC ni. Habis gamba tu. La ni malas la pulak nk amik gambar, maklumlah tangan biasanya berminyak kotor masa repair moto kan..

Skrg aku ikut panduan workshop manual ZXR250 utk spec ukuran dan clearance. Insyaallah, aku harap aku boleh enjoy moto aku ni tanpa masalah serius lagi pasni.

Antara kerosakan yang aku rectify sendiri :
-Overhaul enjin utk tukar bearing conrod dgn piston.
-Overhaul lagi utk tukar crank shaft, cam chain dan tensioner.
-Service fork, tukar oil seal, dust cap dan minyak fork. Dah 3 kali tuu.
-Tukar wheel bearing.
-Service brake.
-Rewiring. Ubahsuai juga..
-Ubahsuai tail, lampu brek, lampu depan, signal juga.
-Jack-up absorber blakang biar tinggi sikit.
-Pengikat silenser ditinggikan lagi

art zxr

Number of posts : 221
Location : Larkin Jaya, Johor Bahru. Johor
Registration date : 2008-01-12

View user profile

Back to top Go down

Re: Turun enjin???

Post  pistole on Sat Jan 19, 2008 6:18 am

- terima kasih , suka tengok gambar-gambar tu.

.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  ronan on Sat Jan 19, 2008 9:50 am

pistole wrote:- terima kasih , suka tengok gambar-gambar tu..

err.. gambar bogelkan moto ok... bogelkan matnan pon ok... ehehhehehehe...

_________________

ronan

Number of posts : 371
Age : 42
Location : JB
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  matnan on Sat Jan 19, 2008 12:03 pm

sape penah oberhol enjin yang ade EFI,contoh macam moto RS125 ke......

matnan

Number of posts : 375
Age : 33
Location : Masai
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  ronan on Sat Jan 19, 2008 12:47 pm

matnan wrote:sape penah oberhol enjin yang ade EFI,contoh macam moto RS125 ke......

warrrggggggggggggghhhhhhhhhhhhhhhhhahahahahhahhahaaha... kene lagiiiiiiiiiiiii................ Mad Mad

_________________

ronan

Number of posts : 371
Age : 42
Location : JB
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  zul_cbr on Sun Jan 20, 2008 10:09 am

matnan wrote:sape penah oberhol enjin yang ade EFI,contoh macam moto RS125 ke......

ni fatwa negara mana plak ni rs125 pakai Fuel Injection neeeeeehhhhhhhhh!!!!!!!!!!!!!!!!!!!!!

ok guys, UPDATE sket...

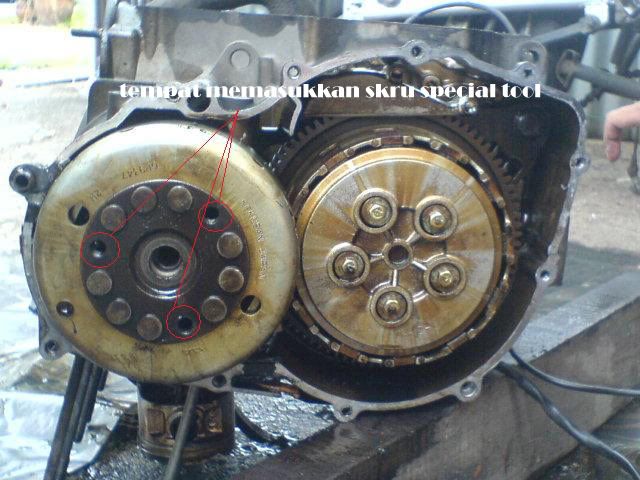

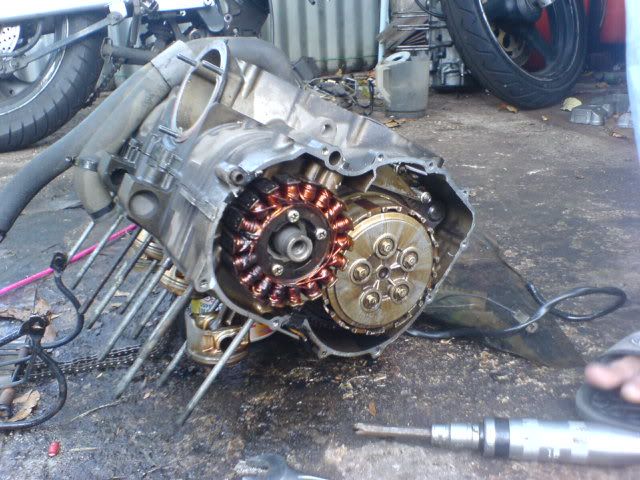

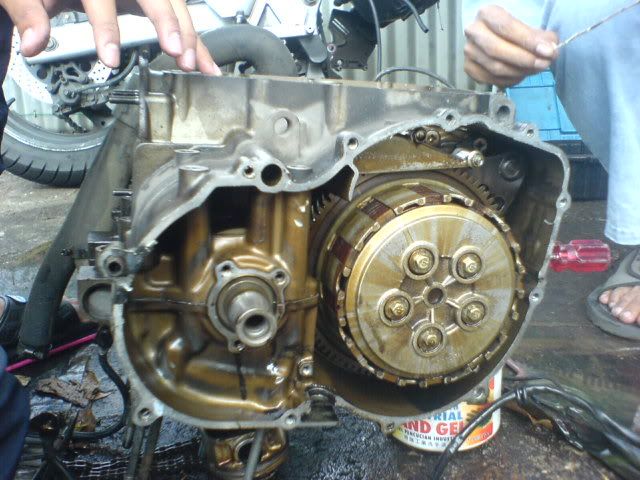

kami menghadapi sedikit masalah nak bukak/belah engine, sbbnya, kami xdpt buka case magnetic coil (apa namanya yek bro?)...



dlm tu ada magnetic coil...


bila disemak2 manual bandit 400, rupanya kna ada "special tool" dari suzuki....perghh...setelah dok mencangkung lama kat depan engine tu, bro tukun(MBC) dpt idea...kami akan buat sendiri "special tool" tu...

dah beli skru,washer,nut,"kayu beroti"...tggu kami buat....saya akan update lagi.

p/s - kalo x salah saya, nama special tool tu ada lah "pulley installer/remover"...


sumber : suzukipitstop.com (specialtool)

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  ecik on Mon Jan 21, 2008 10:29 am

Exclamation caya bro, usahakan hingga berjaya!

ecik

Number of posts : 190
Age : 59
Location : Gelang Patah, Johor ~ Kuantan, Pahang
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  ronan on Mon Jan 21, 2008 10:34 am

aku rasa bangga ada members yang macam ni. berkongsi maklumat yang sebegini. tahniah kpd bro zul. teruskan usaha anda.

_________________

ronan

Number of posts : 371
Age : 42
Location : JB
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  pistole on Mon Jan 21, 2008 12:08 pm

zul_cbr wrote:kami menghadapi sedikit masalah nak bukak/belah engine, sbbnya, kami xdpt buka case magnetic coil (apa namanya yek bro?)

- thats the rotor.

- you can buy something like this



- or make something like this :



- whatever , jangan hammer the rotor ....

cheers and good luck .

.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  zul_cbr on Mon Jan 21, 2008 12:16 pm

pistole wrote:
zul_cbr wrote:kami menghadapi sedikit masalah nak bukak/belah engine, sbbnya, kami xdpt buka case magnetic coil (apa namanya yek bro?)

- thats the rotor.

- you can buy something like this



- or make something like this :



- whatever , jangan hammer the rotor ....

cheers and good luck .

.


bro pistole, thanks! info bro sgt membantu nih!! Very Happy

ya, kami bermasalah cari special tool tu. saya tak rasa di melaka ni ada jual. option lain sama ada naik ke KL atau turun ke Singapore. tapi takpa...

kami akan "cipta" sendiri tool tu...yg penting kna paham konsep pulley tu saje.....cuma kami menghadapi masalah "masa xbanyak"..hehehe..

tggu saya update.....cheers.

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  art zxr on Fri Jan 25, 2008 10:06 am

Haa betul tu apa yg Pistole bagitau. Jangan ketuk magnet dan bahagian2nya. Nnti kekuatan magnet tu terjejas. Panaskan pun jgn sesekali.

Aku tau masalahnya skrg. ZX2 aku haritu pun nak cabut rotor tu susah. Magnet puller takde. Aku nak cipta sendiri benang tread pada magnet tu pelik pulak. Takde jual nut dgn tread mcm tu. Tapi crankcase ZX2 boleh bukak dan kita leh keluarkan seketul crankshaft. Aku hantar pakai hidro press sampai berapa tan baru magnet tu tanggal. Kuat betul melekat.

art zxr

Number of posts : 221
Location : Larkin Jaya, Johor Bahru. Johor
Registration date : 2008-01-12

View user profile

Back to top Go down

Re: Turun enjin???

Post  zul_cbr on Fri Jan 25, 2008 7:30 pm

guys...

UPDATE!!

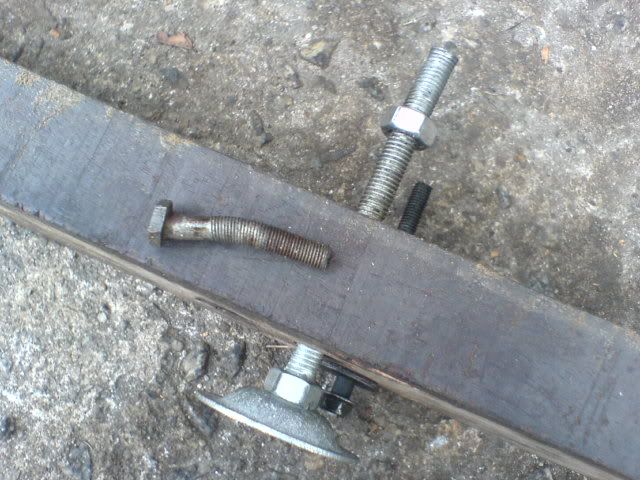

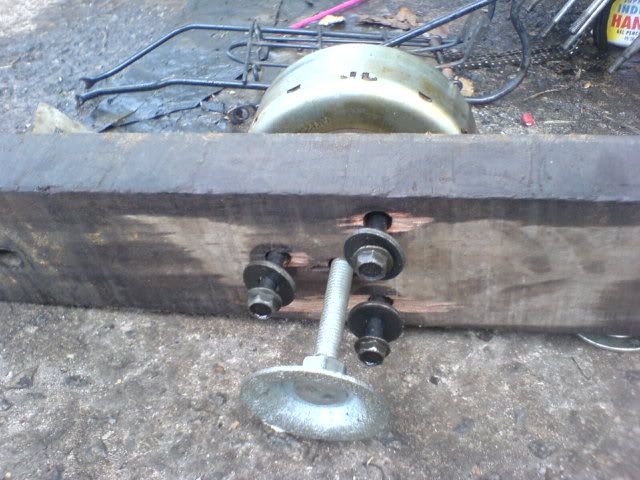

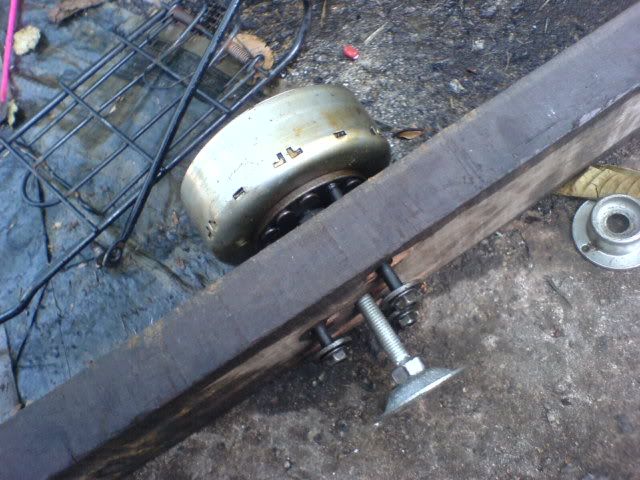

smalam ada masa sket. saya dan castello shoot ke umah bro tukun tempat "sekolah" kitorang...

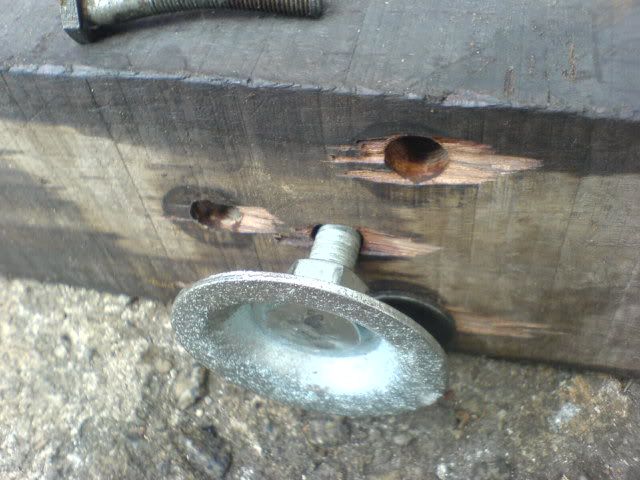

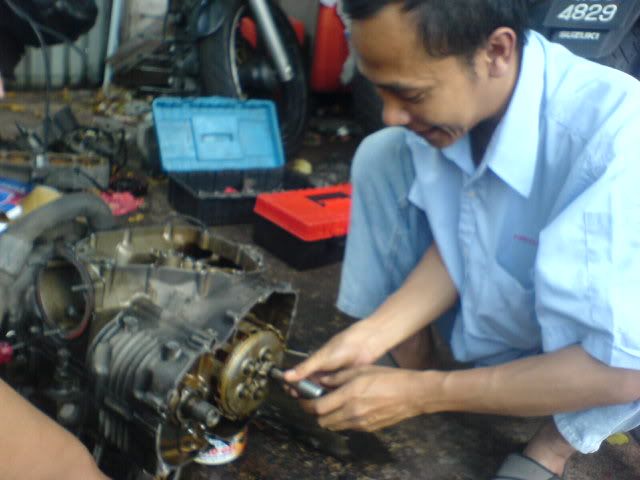

our OWN "special tool".............hehehehehehehe

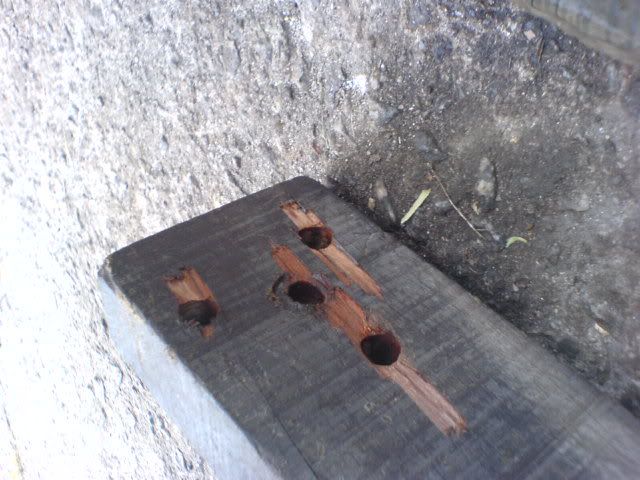

sampai kopak kayu beroti tu...

bengkok skru tu...mmg kuat giler la magnet tu!

kau beroti memula yg xjadi...



amacam? cheers






kalo ada chance, kami nak belajar pulak lilit sendiri.........!

PUNCA KEROSAKAN BANDIT 400 nih!

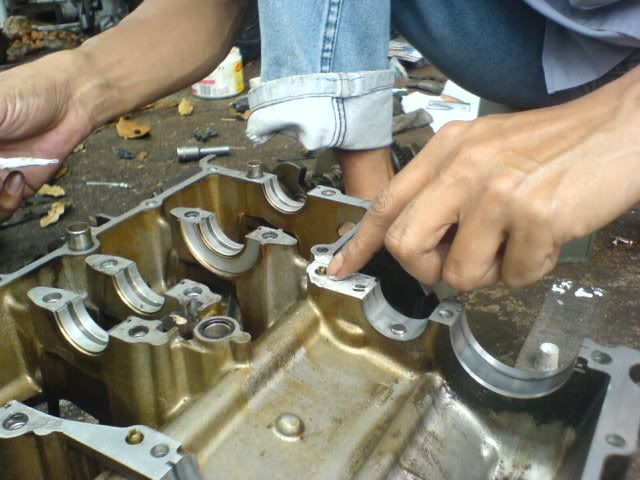

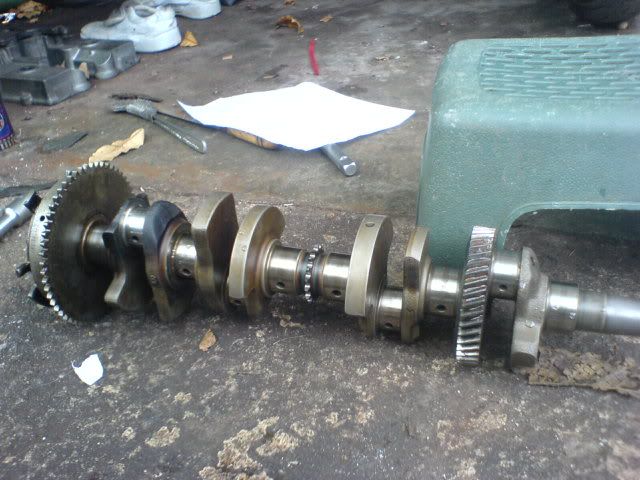

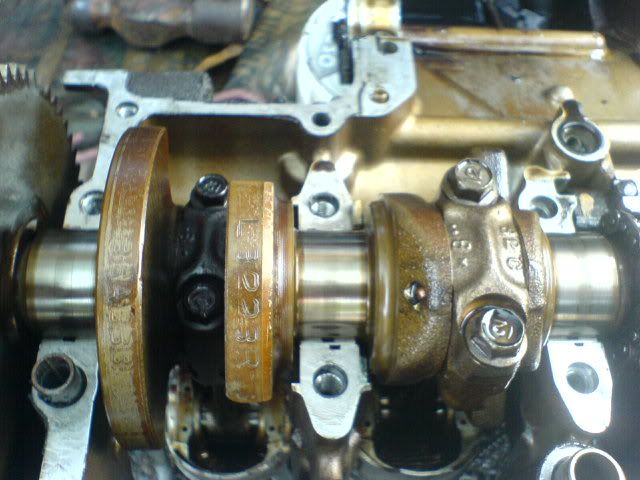

kita boleh nampak bahagian pemegang skru conrod belah kiri berwarna hitam kesan terbakar. beza dgn yg lain kan...

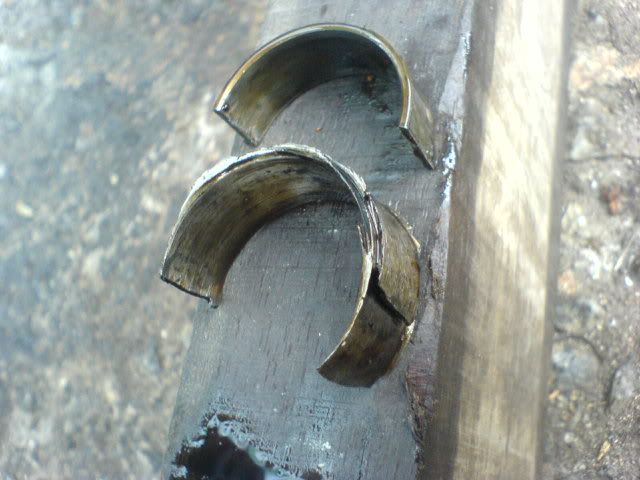

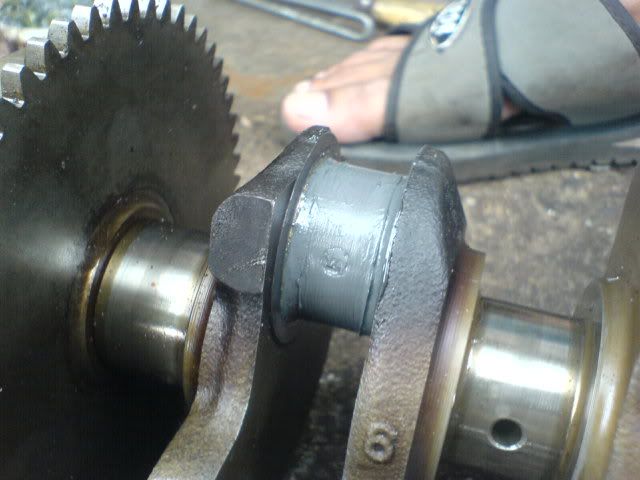

ini dia...bush bearing yg dah bercantum.....dah rosak ler tu...bandingkan dgn bush bearing yg OK kat belakang dia tu.


groove crankshaft yg dah bergerutu...kalo yg lain yg masih elok, licin jer...takpe ini boleh guna kertas pasir utk licinkan semula..

alhamdulillah dah dpt pun kenalpasti kerosakan kat bandito nih...banyak pengalaman yg kami dah dapat dari bro Tukun (MBC)...TQ bro!..

seterusnya kami akan buat moto ni "hidup" semula..dan projek seterusnya...mungkin...."1 blok 150cc...4 blok = 600cc"....hehehehehehehe...conversion bandit400 kpd bandit 600. insyaallah.

saya akan update lagi. terima kasih kerana sudi menjenguk thread yg xseberapa nih.

afro

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  pistole on Fri Jan 25, 2008 7:47 pm

.

- saya really kau respek sama lu !!!

- boleh buat spesial tool pakai kayu .. woohoo .... sedapnya
tengok gambar tu.

- yang bearing shell , definitely failed. Tapi perlu check baik-baik
punca failure (very likely oil starvation , blocked oil feed hole yang
menyusu bearing shell itu).

cheers and thanks for pics .

.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  zul_cbr on Sat Jan 26, 2008 4:20 pm

pistole wrote:.

- saya really kau respek sama lu !!!

- boleh buat spesial tool pakai kayu .. woohoo .... sedapnya
tengok gambar tu.

- yang bearing shell , definitely failed. Tapi perlu check baik-baik
punca failure (very likely oil starvation , blocked oil feed hole yang
menyusu bearing shell itu).

cheers and thanks for pics .

.

hahaha.thanks bro!

ya, u got the point. mmg itu oil engine dah kurang tapi owner layan jugak sampai 180km/j....sbbnya...tingkap tgk level engine oil tu sudah tipu sama kitorang...suzuki punya moto lama takda penyukat mcm Honda and other brand..so, bila tgk tingkap tu, "macam" penuh saja(minyak hitam dah lekat kat tingkap tu) padahal minyak hitam tak cukup...

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  art zxr on Sun Jan 27, 2008 2:14 am

ZXR aku dulu mcm tu jugak. Bunyi bising. Bila bukak tengok 1 plain bearing dah haus. Penapis minyak yg kat dalam oil sump pulak dah tersumbat. Lepas repair tu semuanya ok accept bush crankshaft dh haus lebih sevice limit. Aku pakai jugak. Ganti plain bearing jer. Tapi tu pun tak lama. Bearing yg sama rosak lagi. Nak ganti crankshaft mahal.
Aku carryon guna crankshaft tu. Ganti plain bearing je hingga masa balik tengok motoGP 2006 crankshaft tu giveup terus... Crying or Very sad
Hopefully skrg tak kena mcm tu lagi.

art zxr

Number of posts : 221
Location : Larkin Jaya, Johor Bahru. Johor
Registration date : 2008-01-12

View user profile

Back to top Go down

Re: Turun enjin???

Post  zul_cbr on Fri Feb 08, 2008 8:00 am

art zxr wrote:ZXR aku dulu mcm tu jugak. Bunyi bising. Bila bukak tengok 1 plain bearing dah haus. Penapis minyak yg kat dalam oil sump pulak dah tersumbat. Lepas repair tu semuanya ok accept bush crankshaft dh haus lebih sevice limit. Aku pakai jugak. Ganti plain bearing jer. Tapi tu pun tak lama. Bearing yg sama rosak lagi. Nak ganti crankshaft mahal.
Aku carryon guna crankshaft tu. Ganti plain bearing je hingga masa balik tengok motoGP 2006 crankshaft tu giveup terus... Crying or Very sad
Hopefully skrg tak kena mcm tu lagi.

kalo la dpt buat crankshaft sendiri kat foundry kan best...... Cool

p/s - UPDATE..moto bandit sudah pasang semula enjin..makan masa 2 hari....tggu masa untuk 'run-in' shj...gambar akan di upload kemudian...bearing kami tak beli yg original suzuki pun. kami pergi ke kilang yg ada machine utk proses besi dsb, dan upah mereka utk buat bush bearing sama mcm original suzuki. total cost, RM5. Twisted Evil

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  pistole on Fri Feb 08, 2008 3:22 pm

.

- itu shell-bearing bukan dibuat daripada besi biasa.

eg :

"Traditional rod and main bearing construction is based upon a
three layer configuration composed of a steel backing, a copper-lead
layer and a very thin overlay of babbitt material"

- and the material used to coat the shell bearing must be
"weaker" than that of the crankshaft/main/rod-end material.

.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  zul_cbr on Fri Feb 08, 2008 4:20 pm

pistole wrote:.

- itu shell-bearing bukan dibuat daripada besi biasa.

eg :

"Traditional rod and main bearing construction is based upon a
three layer configuration composed of a steel backing, a copper-lead
layer and a very thin overlay of babbitt material"

- and the material used to coat the shell bearing must be
"weaker" than that of the crankshaft/main/rod-end material.

.

tak mengapa. kami cuba dulu. its just RM5 bro. belajar dari kesilapan.

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  art zxr on Fri Feb 08, 2008 4:21 pm

Yeaa betul tu pistole.

err Zul, kalau aku boleh fabricate crankshaft sendiri, aku dah bina enjin V8 500cc guna piston ZXR250. Bayangkan V8 500cc rev sampai 18000rpm camana bunyinya..

art zxr

Number of posts : 221
Location : Larkin Jaya, Johor Bahru. Johor
Registration date : 2008-01-12

View user profile

Back to top Go down

Re: Turun enjin???

Post  zul_cbr on Tue Feb 12, 2008 12:15 pm

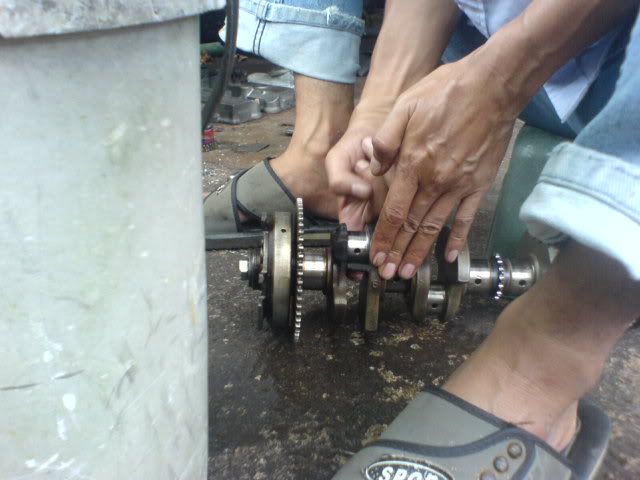

membersihkan groove crankshaft yg bergerutu..menggunakan 'grinding paste'....


cranckshat


grinding paste disapu sebelum digosok...

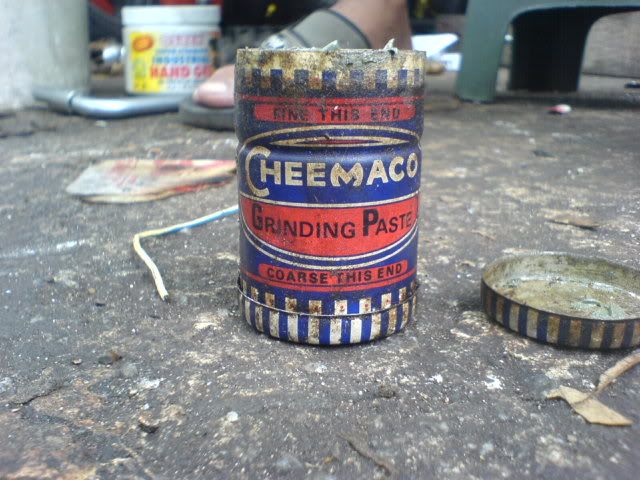

inilah grinding paste.


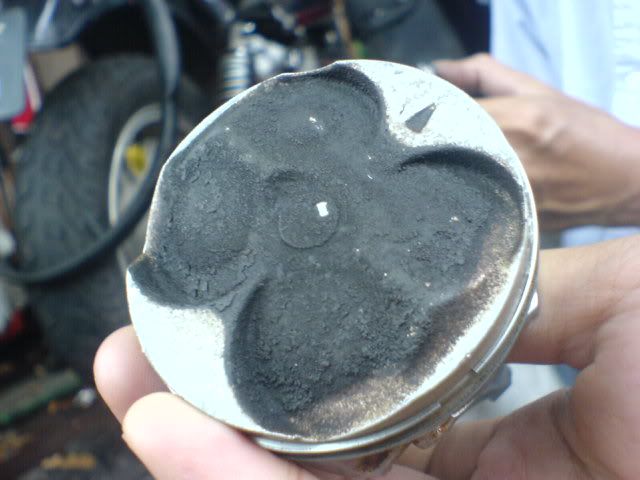

piston



menyapu gam gasket...






mari belajar pasang LEGO...hihihihihih Laughing



nak pasang senang, nak bukak susah. apa lah masalah ko ni ha! Laughing

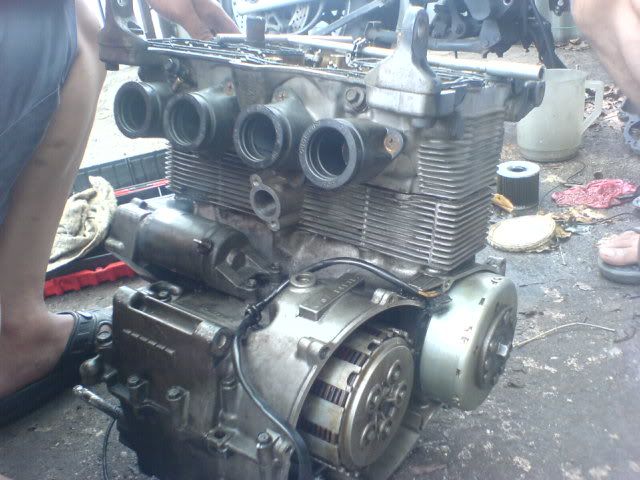

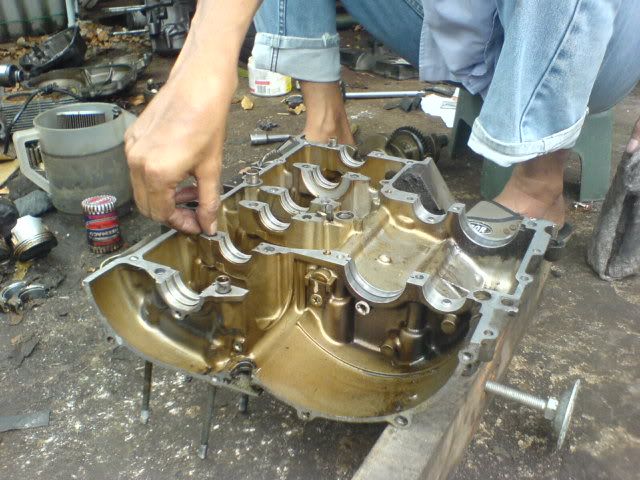

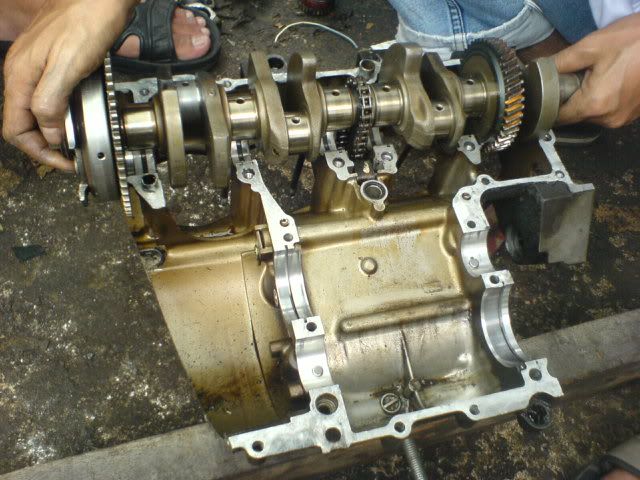

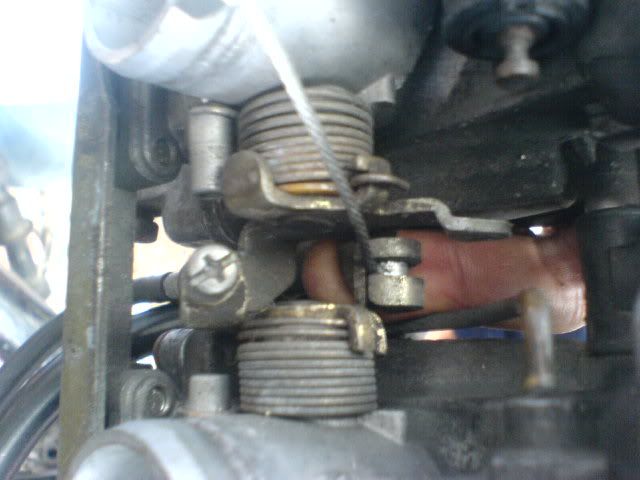

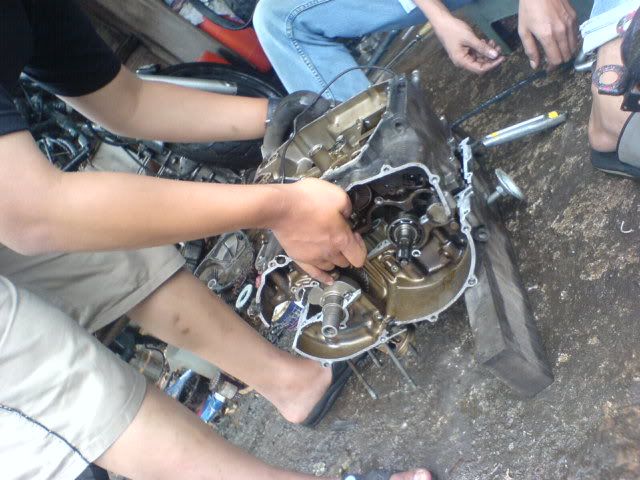

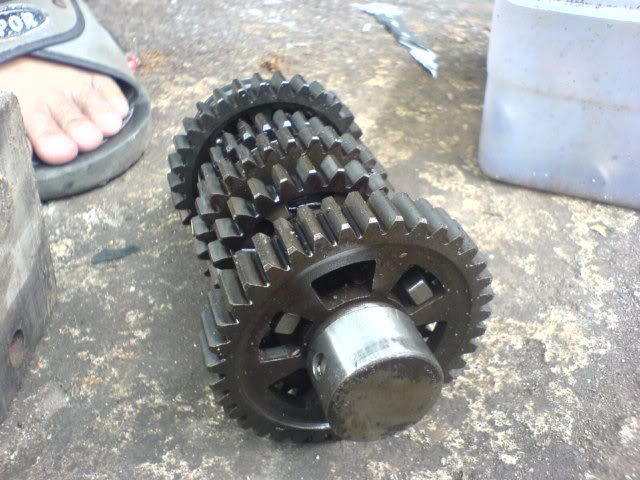

gambar enjin semasa proses pasang-pasang..

tunggu saya update lagi....internet speed mcm kura2...lambat sangat!!!


Last edited by on Fri Feb 15, 2008 12:09 am; edited 1 time in total

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  pistole on Wed Feb 13, 2008 6:34 am

.

- champion !!

.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  zul_cbr on Fri Feb 15, 2008 12:15 am

pistole wrote:.

- champion !!

.

alien tanpa ada sifoo tukun (MBC), siapa lah kami....pegang screwdriver pun menggigil bro....



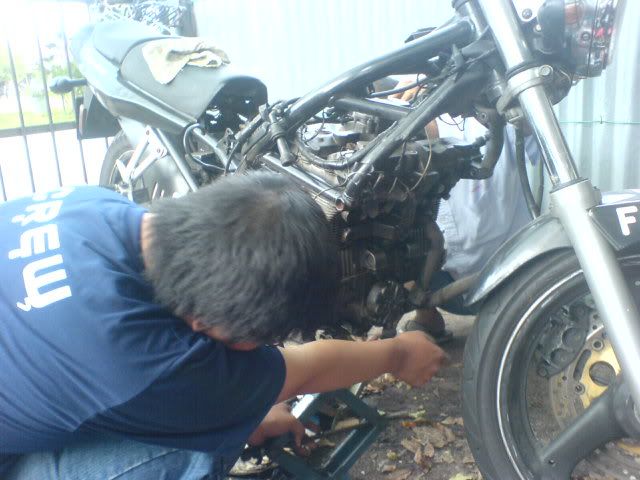

proses me'naik'kan enjin...naked bike boleh la kata tak berapa susah.kalau superbike, belum tau lagi... Rolling Eyes


memasukkan throttle cable...

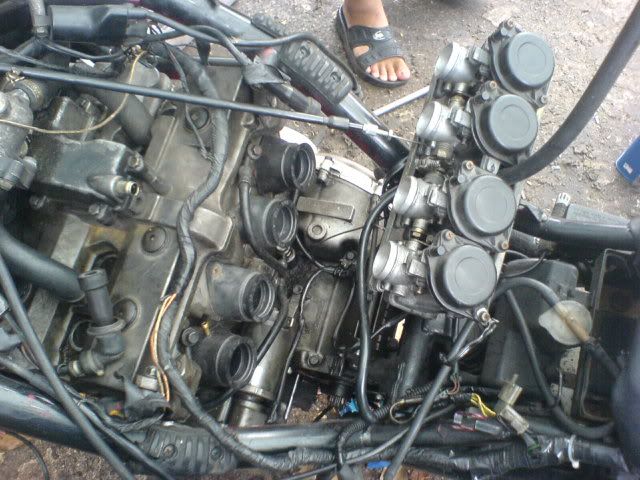

lepas psg throttle cable, nak pasang carburetor pulak...


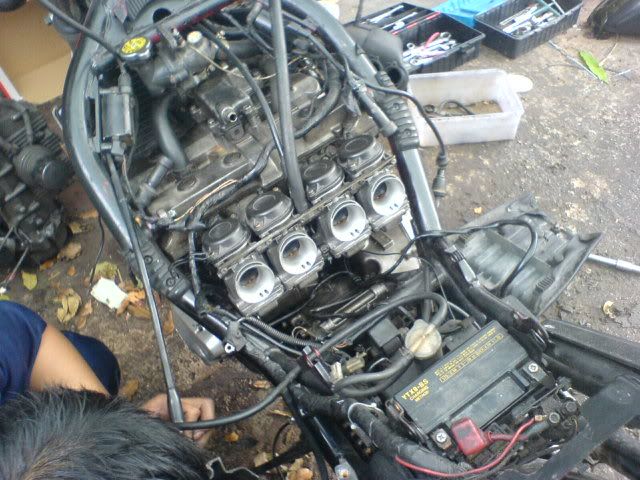

tadaaaa.....lepas pasang carburetor...


dah dekat senja baru siap naik...2 jam ambil masa...

zul_cbr

Number of posts : 642
Age : 28
Location : JB-Ayer Keroh,Melaka
Registration date : 2008-01-09

View user profile http://profiles.friendster.com/mzul

Back to top Go down

Re: Turun enjin???

Post  pistole on Fri Feb 15, 2008 10:12 am

.

- yang grinding paste tu , sepatutnya for valve lapping.

- not for crank journal .....

- but really respect the DIY spirit bagi benda ni. Sudah
lama tak nampak orang semangat kuat seperti korang.
This was/is a BIG job.

cheers and good work !

.

pistole

Number of posts : 95
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  ecik on Fri Feb 15, 2008 10:19 am

Keep us posted zul. Lepas ni kalau tukun aku ada masalah (doa jgn), mungkin kita boleh buat kot!

ecik

Number of posts : 190
Age : 59
Location : Gelang Patah, Johor ~ Kuantan, Pahang
Registration date : 2008-01-09

View user profile

Back to top Go down

Re: Turun enjin???

Post  Sponsored content Today at 4:12 pm


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
